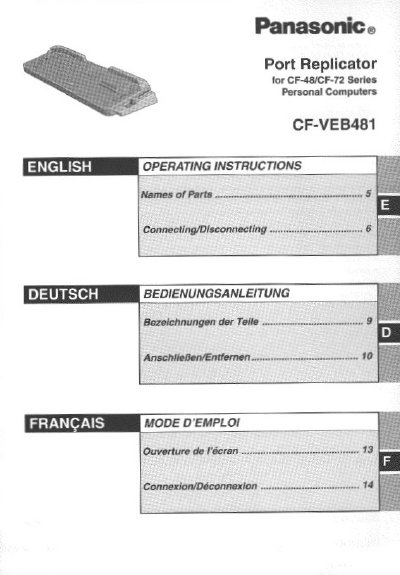

This document provides operating instructions for the Panasonic CF-VEB481 Port Replicator, intended for use with the CF-48 and CF-72 series of Panasonic personal computers. The device allows users to connect peripheral devices to the computer via a single interface cable, eliminating the need to connect and disconnect multiple cables during transport. The manual includes details on parts inclusion, specifications, and names of parts.
| Power Supply Input | DC 15.6 V |
|---|---|
| Expansion Bus Connector | 100-pin |
| Physical Dimensions | 342 mm x 130 mm x 66mm |
| Weight | Approx. 1.5 kg |
| Operating Environment Temperature | 5 to 35 °C |
The use of an interface cable longer than 3 m (9.84 feet) is not recommended.
The specified AC Adaptor is Model No. CF-AA1639A.
No, it is not recommended to move the port replicator when it is connected to the computer.
