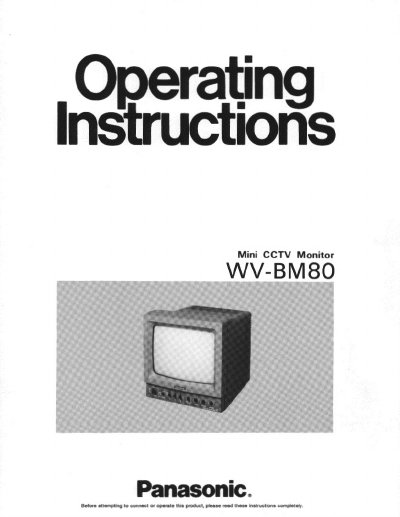

This manual provides operating instructions for the Panasonic Mini CCTV Monitor model WV-BMB80 (WVBM80). The device features a built-in sequential switcher designed to connect up to three cameras using a single coaxial cable. It is suitable for surveillance in offices, factories, stores, schools, hospitals, and residential buildings.
| Power Supply | 120V AC 60 Hz |
|---|---|
| Camera Input | 1.0Vp-p/75 ohms, Composite x 3 (BNC) |
| Video Input | 1.0Vp-p/75 ohms, composite x 1 (BNC) |
| Video Output | 1.0Vp-p/75 ohms, composite x 1 (BNC) |
| Camera Switching | Manual/Auto (Sequence) With manual bypass |
| Sequential Switching Interval | Adjustable; 1 to 30 sec. |
| Resolution | 750 lines at center |
| Dimensions | 9"(W) x 9-7/16"(H) x 10-3/8"(D) |
| Weight | 8.4 Ibs. |
As many as three WV-80 cameras can be connected to this monitor.
Yes, the interval can be manually adjusted from 1 to 30 seconds.
