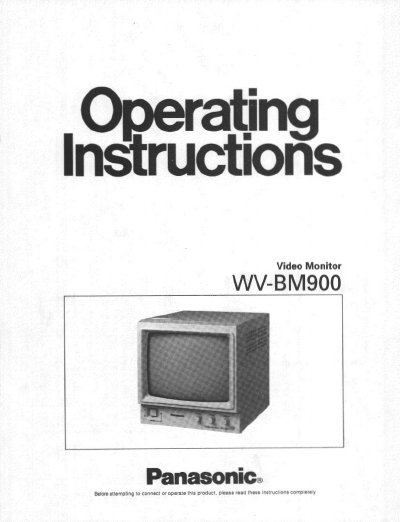

This manual provides instructions for the Panasonic WV-BM900 video monitor, an 8-9/16-inch diagonal display designed for sharp black and white pictures with a horizontal resolution of more than 750 lines. It details the front-mounted controls for picture adjustment, including power, vertical hold, brightness, and contrast.
| Screen Size | 8-9/16" diagonal |
|---|---|
| Horizontal Resolution | More than 750 lines |
| Power Source | 120V AC, 60 Hz/12V DC 2A |
| Power Consumption | Approx. 29W |
| Video Input Impedance | 75-ohm or high impedance |
| Video Input Level | 1.0Vp-p |
| Horizontal Scanning Frequency | 15.75kHz |
| Vertical Scanning Frequency | 60Hz |
| Ambient Operating Temperature | 14°F - 122°F (-10°C - +50°C) |
The monitor produces sharp pictures with a horizontal resolution of more than 750 lines at the center.
Yes, the monitor can be rack mounted using the optional Rack Mount Kit WV-Q28.
