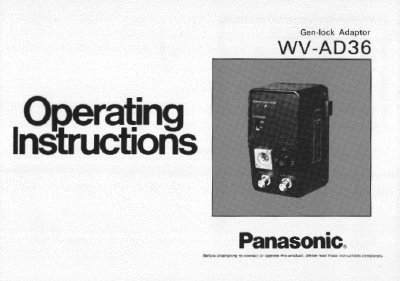

The Panasonic WV-AD36 is a gen-lock adaptor designed to synchronize color cameras, specifically the WV-3260/8AF and WV-D5000, with an external reference signal in EFP and studio applications. It allows for the synchronization of the camera's color video signal using a composite or black burst signal introduced via a dedicated connector or a system switcher.
| Power Source | +12V (11V - 20V), 0.7A DC |
|---|---|
| Video Output | 1.0Vp-p NTSC composite/75 ohms |
| Gen-lock Input | NTSC composite signal or black burst signal |
| Subcarrier Phase Adjustment | Adjustable more than 360° |
| Horizontal Phase Adjustment | from —0.1 psec to +1.5ysec |
| Operating Temperature | 32°F - 104°F (0°C - +40°C) |
| Dimensions | 3-1/4" (W) x 5-1/8" (H) x 3-5/16" (D) |
| Weight | 0.88 lbs (0.4kg) |
It is used to synchronize the color camera WV-3260/8AF or WV-D5000.
The unit requires a nominal 12V DC power supply, with a range of 11V to 20V.
Yes, the subcarrier phase can be adjusted continuously to more than 360°.
