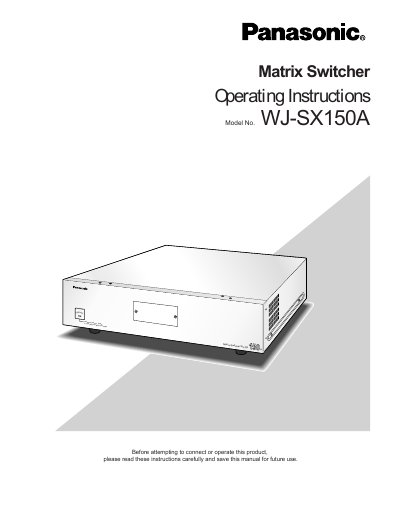

This document is the operating instructions manual for the WJ-SX150A matrix switcher. The document provides basic information about the product, operating instructions, and precautions. It also includes the product's serial number and theft prevention advice.
The Panasonic WJ-SX150A is a matrix switcher designed for surveillance control systems. It supports connections for up to 16 cameras, 4 monitors, and 4 system controllers in a basic configuration. The unit allows for master-slave connections, enabling the expansion of the system to support up to 64 cameras when using multiple units.
| Max cameras connectable (basic) | 16 cameras |
|---|---|
| Max monitors connectable | 4 monitors |
| Max system controllers connectable | 4 system controllers |
| Max cameras with master-slave connection | Up to 64 cameras |
Up to 64 cameras can be connected by using five WJ-SX150A units in a master-slave setup.
You need to install the Multiplexer Board WJ-SXB151 inside the matrix switcher.
Yes, the system supports RS-485 type camera connections.
