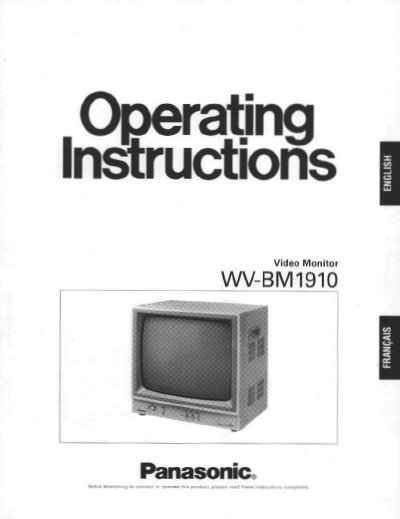

The Panasonic WV-BM1910 is a desktop closed-circuit video monitor designed for surveillance and studio applications. It features an 18-5/8 inch diagonal viewing screen with a horizontal resolution of 1000 lines at the center. The device supports both under-scan and normal scan modes and can be used with other CCTV monitors or Panasonic Video Cassette Recorders.
| Horizontal Resolution | 1000 TV lines at center |
|---|---|
| Tube Size (Diagonal) | 473 mm (18-5/8") actual visual size |
| Power Source | 120V AC, 60 Hz |
| Power Consumption | Approx. 47 W |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Weight | 20 kg (44 lbs) |
The monitor has a horizontal resolution of 1000 lines at the center of the screen.
Yes, the WV-BM1910 can be used with other CCTV monitors or Panasonic Video Cassette Recorders.
A 75 ohm coaxial cable (such as RG-59, RG-6/U, or RG-11/U) should be used.
