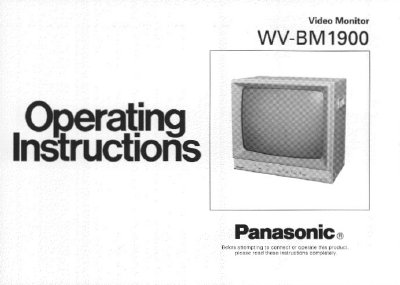

The Panasonic WV-BM1900 is a desktop closed-circuit video monitor designed for surveillance and studio applications. It features an 18-5/8-inch diagonal screen with a horizontal resolution of more than 850 lines at the center. The unit includes front-mounted controls for fast picture adjustment and standard BNC-type input and output connectors for compatibility with other CCTV monitors and video tape recorders.
This manual provides instructions on operating the monitor, including the functions of major controls such as brightness, contrast, focus, and scan size. It also details connection procedures for power, video cables, and external sync signals, along with safety precautions and technical specifications.
| Screen Size | 18-5/8" (47cm) diagonal |
|---|---|
| Horizontal Resolution | More than 850 lines at centre |
| Input Power | 120V AC, 60Hz |
| Operating Temperature | -10°C to +50°C |
The unit is designed for indoor use with an ambient temperature range of -10°C to +50°C.
Yes, rack mounting is available with an optional rack mount adaptor.
