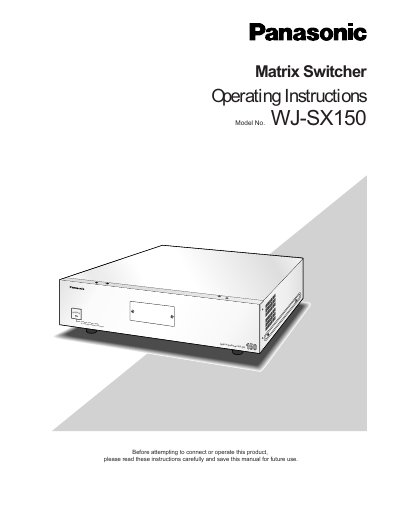

Panasonic WJ-SX150 Matrix Switcher Operating Instructions

About this manual

The Panasonic WJ-SX150 is a matrix switcher designed for surveillance control systems. It supports configurations with up to 16 cameras, 4 monitors, and 4 system controllers. The unit can be combined with Digital Disk Recorders (WJ-HD500 or WJ-HD100 Series) or time-lapse VCRs to establish a complete local area surveillance system.

What's inside

• Features
• System Description
• Terminal Mode Operation
• PS-Data Controller Operation
• Setup Procedures
• Camera Control
• Alarm Control
• Multiplexer Operations
• Troubleshooting
• Specifications

Specifications

Frequently asked questions

What is the maximum number of cameras supported?

The system is designed for a surveillance control system composed of up to 16 cameras.

What is the maximum number of cameras supported by this matrix switcher?

The WJ-SX150 Matrix Switcher is designed for a surveillance control system composed of up to 16 cameras.

How many monitors and system controllers are included in the standard configuration?

The standard system includes 4 monitors and 4 system controllers.

Is a multiplexer board required to use WJ-HD100 Series or time-lapse VCRs?

Yes, you need to install Multiplexer Board WJ-SXB151 inside the matrix switcher to use these devices.
