Panasonic WJ-GXE900/WJ-GXD900 MPEG2 Encoder/Decoder Operating Instructions

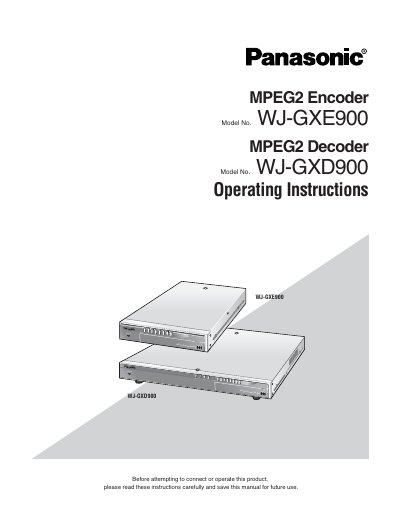

MPEG2 Encoder Model No. WJ-GXE900 MPEG2 Decoder Model No. WJ-GXD900 Operating Instructions

Brand: Panasonic
Category: Network Switches
Document type: User Manual
Language: English
Pages: 119
File format: PDF
File size: 4 MB
Published: 08 August, 2012
Updated: 30 September, 2023
MD5 checksum: C8B46FB57642CF7913195837D19CCD77
PDF: Panasonic WJ-GXE900/WJ-GXD900 MPEG2 Encoder/Decoder Operating Instructions PDF

About this manual

This manual provides operating instructions for the Panasonic WJ-GXE900 MPEG2 Encoder and WJ-GXD900 MPEG2 Decoder. The system converts analog video signals (NTSC) to digital data (MPEG2) and vice versa, allowing image delivery over a network supporting TCP/IP and UDP/IP protocols.

What's inside

Features
Precautions
System Requirements
Major Operating Controls
Connections
Setup
Settings Menus of the Encoder
Settings Menus of the Decoder
Troubleshooting

Specifications

Video Compression Scheme	MPEG2
Frame Rate	30 fps
Maximum Bit Rate	9 Mbps
Network Protocols	TCP/IP and UDP/IP
Ethernet Speed (Encoder)	100BASE-TX
Ethernet Speed (Decoder)	100BASE-TX, 1000BASE-T
Maximum Camera Inputs	4 cameras
Operating Temperature Range	-10 °C and +50 °C
Input Power Source	120 V AC 60 Hz

Frequently asked questions

How many cameras can be connected to the MPEG2 encoder?

Up to 4 cameras can be connected to the MPEG2 encoder.

What is the operating temperature range for this appliance?

The appliance should be used where temperatures are between -10 °C and +50 °C (14 °F to 122 °F).

How long should the built-in backup battery be charged before first use?

The built-in backup battery should be charged by turning on the power for 48 hours or more.
