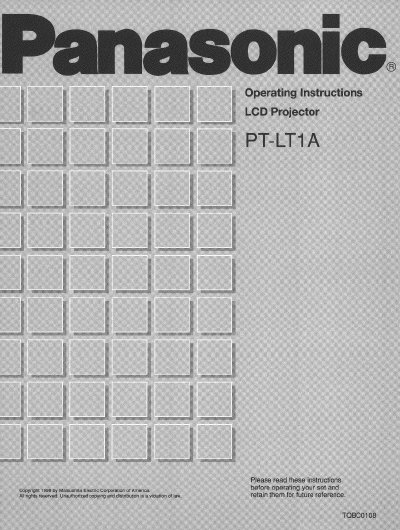

This document provides operating instructions for the Panasonic PT-LT1A LCD Projector. It details safety precautions, specifications, and step-by-step procedures for setting up the device on a floor, table, or wall mount. The guide explains how to connect various video sources including S-Video and RGB signals.
| Type | LCD Projector |
|---|---|
| Power Source | AC 120V 60 Hz |
| Power Consumption | 160W (Stand-by condition : approx, 5W) |
| Color System | PAL, SECAM, NTSC 3.58, NTSC 4.43 |
| LCD Panel | 0.9Type Transparent LCD Panels (3), 3 Primary Color Type, 921,600 dots (307,200 x 3) |
| Optical Lamp | 100W UHP Lamp |
| Optical Output | 400ANSI Lumens |
| Weight (Net) | 8.4 Kg [18.5 Ibs] |
The projector consumes 160W during operation and approximately 5W in stand-by condition.
The projector supports PAL, SECAM, NTSC 3.58, and NTSC 4.43 color systems.
The projector has an optical output of 400 ANSI Lumens.
