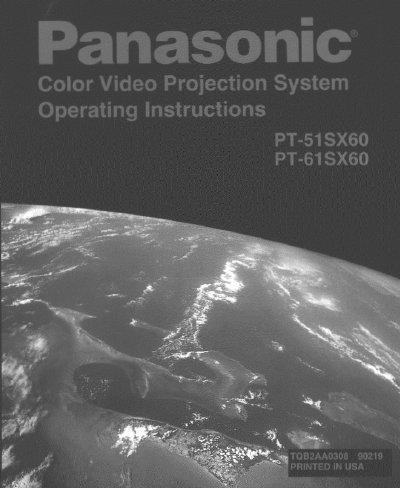

This document provides operating instructions for the Panasonic PT-51SX60 and PT-615X60 Color Video Projection Systems. It includes safety warnings regarding electric shock and physical handling, as well as care and cleaning guidelines for the projection screen and cabinet.
The manual details installation procedures, including optimal television location to avoid sunlight or magnetic interference. It covers optional cable connections such as VCR, Cable Box, and Amplifier setups, providing specific wiring diagrams and connection steps for various configurations like Picture-in-Picture (PIP) operation.
| Power Source | 120V AC, 60Hz |
|---|---|
| Channel Capability | 181 VHF-12; UHF-56; Cable-125 |
| Video Input Jacks | 4 Video input Jacks 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Input Jacks | 8 Audio Input Jacks 500mV RMS 47K Ohm |
| S-Video Input Jacks | 2 S-Video Input Jacks S-Video (Y-C) Connector |
Use a mild soap solution or window cleaner and a clean cloth. Do not use abrasive cleaners, laundry detergent, alcohol, ammonia, or petroleum based products.
Yes. The manual provides specific connection diagrams and procedures for connecting the television to a VCR using S-Video or Video inputs.
