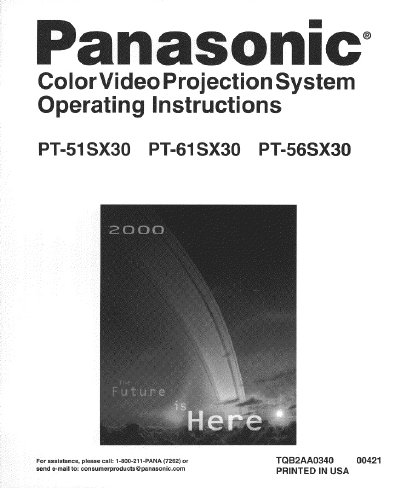

This document provides operating instructions for the Panasonic PT-51SX30, PT-61SX30, and PT-56SX30 Color Video Projection System. It includes setup guidelines for television location and cable connections, as well as instructions for connecting optional equipment like VCRs and cable boxes. The manual details the use of the Roller Guide Menu navigation system and explains special features such as Picture-in-Picture (PIP), closed captioning, and sleep timers.
| Power Source | 120V AC, 60Hz |
|---|---|
| Channel Capability | 1841 (VHF-12; UHF-56; Cable-125) |
| Video Input Jacks | 4 |
| Audio Input Jacks | 8 |
| Video Output Jack | 4Vp-p, 75 Ohm, Phono Jack Type |
| Audio Output Jacks | 2 |
| Component Input | Y / Pg / PR |
| S-Video Input Jacks | 3 |
Use a mild soap solution or window cleaner and a clean cloth. Do not use abrasive cleaners, laundry detergent, alcohol, ammonia, or petroleum based products.
Shielded audio and video cables should be used, specifically 75-ohm coaxial shielded cables for best results.
The remote control must be programmed with supplied codes to operate the VCR.
The system requires a power source of 120V AC at 60Hz.
