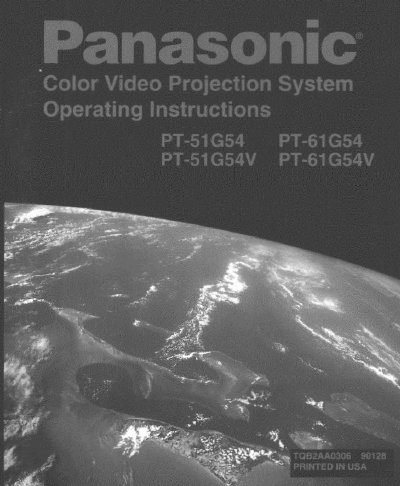

This manual provides operating instructions for the Panasonic PT-51G54 and PT-61G54 Color Video Projection Systems. It includes safety warnings, customer record information, and care and cleaning guidelines for the projection screen and cabinet.
The document details installation procedures, including location requirements, cable connections, and optional equipment setup. It also explains the Picture In Picture (PIP) operation with or without a VCR and Cable Box, as well as audio adjustments.
| Power Source | 120V AC, 60Hz |
|---|---|
| Channel Capability | 181 VHF-12; UHF-56; Cable-113 |
| Video Input Jacks | 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Input Jacks | 500mV RMS 47K Ohm |
Occasional dusting with a feather duster or very soft brush using only up and down motions is recommended. Never rub across the screen in side to side motion.
Shielded audio and video cables should be used, specifically 75-ohm coaxial shielded cables.
Yes, this unit includes a two tuner Picture In Picture (PIP) feature that allows watching two live broadcasts simultaneously.
