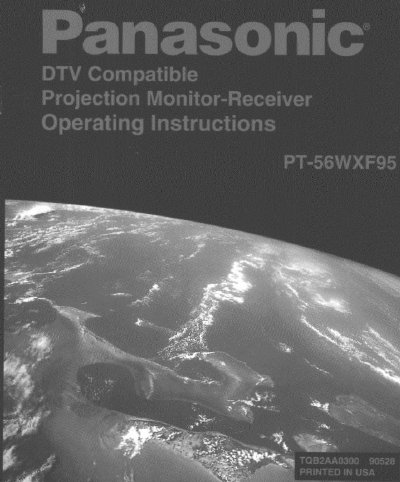

This manual provides operating instructions for the Panasonic PT-56WXF95 Projection Monitor-Receiver. The device features state-of-the-art technology for high-quality picture and sound, supporting both standard and digital television signals. It is designed to integrate with home theater systems and various optional equipment such as VCRs and cable boxes.
| Power Source | 120V AC, 60Hz |
|---|---|
| Video Input Jacks | 3 Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Input Jacks | 6 Audio Input Jacks 500mV RMS 47K Ohm |
| Video Output Jack | 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Output Jacks | 2 Audio Output Jacks 0-2.0V RMS 4.7K Ohm |
| S-Video Jacks | 4 S-Video Jacks (3 Inputs & 1 output) |
| Component Video Inputs | 2 Component Video Inputs (Y, Pp, Pr) 75 Ohm, Phono Jack Type |
The unit requires a 120V AC, 60Hz power source.
Yes, when connected to a Panasonic digital TV set-top box, it can display HDTV 1080i and 720p formats.
Do not use abrasive cleaners, laundry detergent, automatic dishwasher soap, alcohol, ammonia, or petroleum based products.
Push from the left side of the set, as the casters on the right side do not pivot in all directions.
