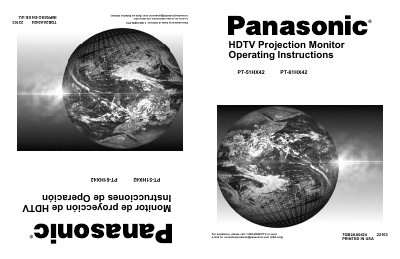

This manual describes how to operate the PT-51HX42 and PT-61HX42 projection monitors.
This document provides operating instructions for the Panasonic PT-51HX42 and PT-61HX42 HDTV Projection Monitors. It details the initial setup process, including language selection, mode configuration (TV or Cable), and automatic channel programming. The guide also explains how to adjust convergence to ensure proper image alignment.
The manual covers the use of the front control panel and the included remote control, including special buttons for Aspect, BBE, and SAP. It provides instructions for connecting various optional equipment such as VCRs, cable boxes, and digital set-top boxes. Additionally, it includes a feature chart comparing the models and a troubleshooting chart for common issues.
| Power Source | 120V AC, 60Hz |
|---|---|
| Channel Capability | 181 VHF-12; UHF-56; Cable-113 |
| Video Input Jacks | 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Input Jacks | 500mV RMS 47K Ohm |
| Digital Scan Rate | 120 |
You can select TV (antenna) or CABLE mode in the Auto Set Up menu.
Yes, the manual includes a section on connecting a VCR and a Cable Box.
