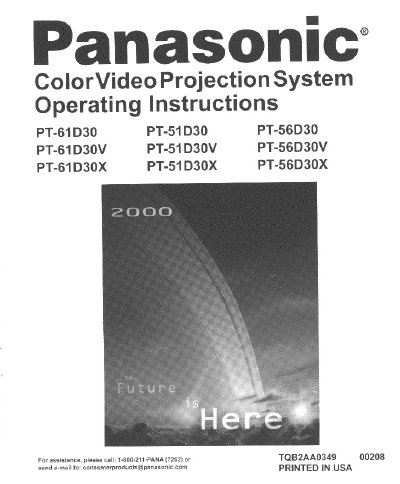

Panasonic PT-61D30(V/X) PT-51D30(V/X) PT-56D30(V/X) Manual

Brand: Panasonic
Category: Projector
Document type: User Manual
Language: English
Pages: 50
File format: PDF
File size: 1.4 MB
Published: 06 August, 2012
Updated: 06 August, 2012
MD5 checksum: BBE4E33AC5CF84D8C0B45A17BCDD24C5
PDF: Panasonic PT-61D30(V/X) PT-51D30(V/X) PT-56D30(V/X) Manual PDF

About this manual

This manual provides operating instructions for the Panasonic PT-61D30, PT-51D30, and PT-56D30 Color Video Projection Systems. It includes safety warnings, care and cleaning guidelines, and detailed specifications for various models including the V, X, and EN variants.

What's inside

Congratulations
Care and Cleaning
Specifications
Installation
Television Location
Optional Cable Connections
AC Power Supply Cord
Cable / Antenna Connection
Optional Equipment Connections
VCR Connection

Specifications

Channel Capability	181 VHF-12; UHF-56; Cable-125
Video Input Jacks	Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks	500mV RMS 47K Ohm
Video Output Jack	Vp-p, 75 Ohm, Phono Jack Type

Frequently asked questions

How should I move the set?

Push from the left side of the set, as the casters on the right side do not pivot in all directions.

What should I avoid when cleaning the projection screen?

Do not use abrasive cleaners, laundry detergent, alcohol, ammonia, or petroleum based products.

What type of cables are recommended for connections?

Use 75-ohm coaxial shielded cables for best results.
