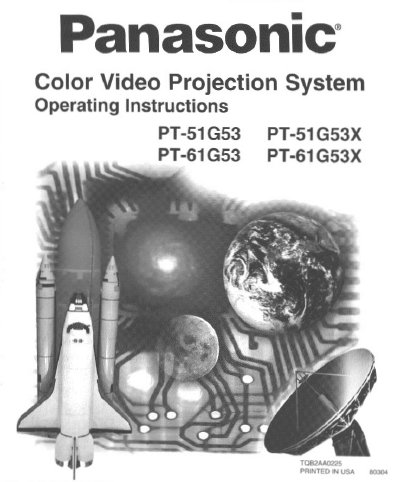

This document provides operating instructions for the Panasonic PT-51G53 and PT-61G53 Color Video Projection System. It includes safety warnings, customer record information, care and cleaning guidelines, and detailed specifications for power sources and input jacks.
The guide covers installation procedures such as selecting a proper location, connecting AC power, and linking cable or antenna inputs. It also explains optional equipment connections for VCRs and audio amplifiers, along with specific steps for Picture In Picture (PIP) operation to watch multiple channels simultaneously.
| Power Source | 120V AC, 60Hz |
|---|---|
| Channel Capability | 181 VHF-12; UHF-56; Cable-113 |
| Video Input Jacks | 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio input Jacks | 500mV RMS 47K Ohm |
Occasional dusting with a feather duster or very soft brush using only up and down motions is recommended. Never rub across the screen in side to side motion.
Shielded audio and video cables should be used, specifically 75-ohm coaxial shielded cables for best results.
Press the PIP button on the Remote Control to display the PIP frame, then choose channels for the frame and main picture using the remote buttons.
