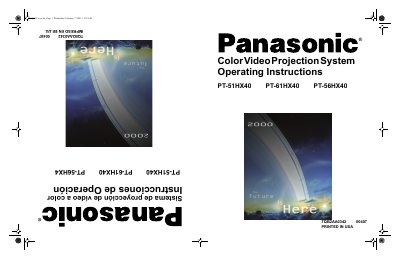

This is the operation manual of PT-51HX40 PT-61HX40 PT-56HX40
This manual provides operating instructions for the Panasonic PT-51HX40, PT-61HX40, and PT-56HX40 Color Video Projection Systems. It includes safety warnings, customer record information, and care and cleaning guidelines for the projection screen and cabinet. The document details the specifications for power, channel capability, and input/output jacks.
| Power Source | 120V AC, 60Hz |
|---|---|
| Channel Capability | 181 VHF-12; UHF-56; Cable-125 |
| Video Input Jacks | 4 Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Input Jacks | 8 Audio Input Jacks 500mV RMS 47K Ohm |
| Video Output Jack | 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Output Jacks | 2 Audio Output Jacks 0-2.0V RMS 4.7K Ohm |
| Component Input | Component Input (Y / Pg/ Pr) 75 Ohm, Phono Jack Type |
| S-Video Input Jacks | 3 S-Video Input Jacks S-Video (Y-C) Connector |
Use a mild soap solution or window cleaner and a clean cloth. Do not use abrasive cleaners, laundry detergent, or automatic dishwasher soap.
Push from the left side of the set. Do not move from the right side as the casters do not pivot in all directions, which could cause the set to tip over.
Yes, but the remote control must be programmed with the supplied codes to operate the VCR.
