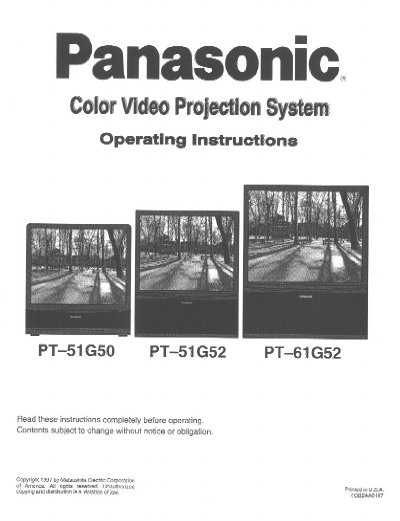

This document provides operating instructions for the Panasonic PT-51G50, PT-51G52, and PT-61G52 Color Video Projection Systems. It includes safety warnings, installation guidelines, and connection instructions for various video and audio equipment. The manual details the use of the remote control unit and explains how to adjust picture and sound settings.
| Power Source | 120V, 60Hz, AC |
|---|---|
| Channel Capability | 181 channels |
| Video Input Jacks (PT-51G52) | 3: 1V p-p, 75 ohm, phono jack type |
| Video Input Jacks (PT-61G52) | 4: 1V p-p, 75 ohm, phono jack type |
| Audio Input Jacks (PT-61G52) | 4: 500mV rms, 47K ohm |
| S-Video Input Jacks | 2: S-Video (Y-C) Connector |
| Sound System | Stereo Sound Dolby Pro Logic Surround |
| Tuner | 2 Tuner |
Do not remove covers or back as there are no user-serviceable parts inside. Do not use near water or place on unstable surfaces.
Unplug the receiver before cleaning. Do not use liquid or aerosol cleaners; use a damp cloth instead.
No, using attachments not recommended by the manufacturer may cause hazards.
