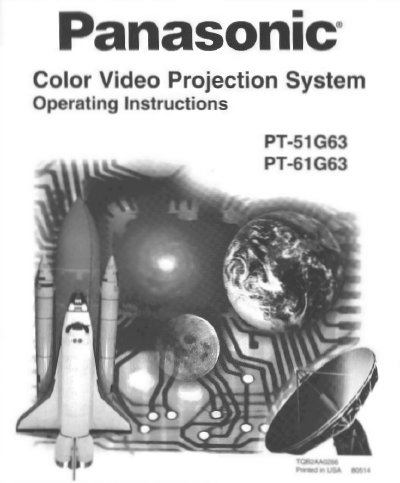

This manual provides operating instructions for the Panasonic PT-51G63 and PT-61G63 Color Video Projection Systems. It includes safety warnings, customer record information, and care and cleaning guidelines for the projection screen and cabinet.
The document details installation procedures, including television location requirements, optional cable connections (cable/antenna), AC power supply cord usage, and connections for external equipment such as VCRs, amplifiers, and Dolby Center Channel inputs. It also explains how to use the Roller Guide menu features.
| Power Source | 120V AC, 60Hz |
|---|---|
| Channel Capability | 181 VHF-12; UHF-56; Cable-125 |
| Video Input Jacks | 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Output Jacks | 0-2.0V RMS 4.7K Ohm |
Use a mild soap solution or window cleaner and a clean cloth, avoiding abrasive cleaners.
Shielded audio and video cables, specifically 75-ohm coaxial shielded cables.
Connect the amplifier to the CENTER CHANNEL INPUT on the back of the TV and select DOLBY CENTER MODE in the menu.
