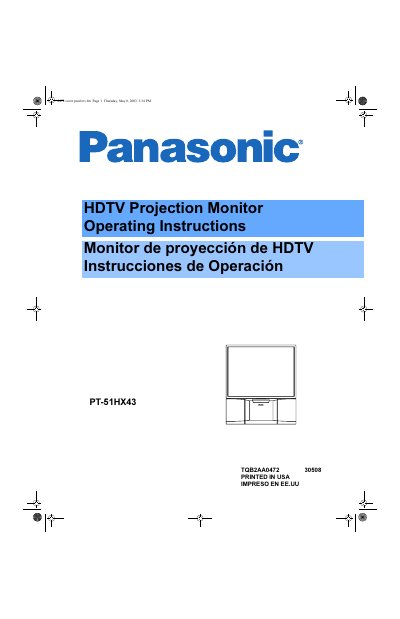

This manual provides operating instructions for the Panasonic PT-51HX43 High Definition Television (HDTV) Projection Television. It covers essential safety warnings, initial setup procedures including convergence adjustment, and detailed guidance on using the front control panel and remote control.
The document details how to connect various video sources such as cable boxes, VCRs, and DVD players. It also explains specific features like Picture-in-Picture (PIP), Split Screen, and Freeze modes, along with menu navigation for channel tuning, timer settings, and audio adjustments.
| Power Source | 120V AC, 60Hz (4.2A) |
|---|---|
| Channel Capability | 181 VHF-12; UHF-56; Cable-113 |
| Video Input Jacks Impedance | 75 Ohm, Phono Jack Type |
| Audio Input Jacks Impedance | 47K Ohm |
| Menu Languages | ENG/SPAN/FR |
Use a mild soap solution or window cleaner with a clean cloth, avoiding abrasive cleaners and alcohol.
You must ensure that the television has been turned on for at least 20 minutes before attempting to adjust the convergence.
To prevent permanent picture tube damage, you should limit the display of fixed images to no more than 15% of your total viewing time per week.
The television requires a 120V AC, 60Hz power source and draws 4.2A.
