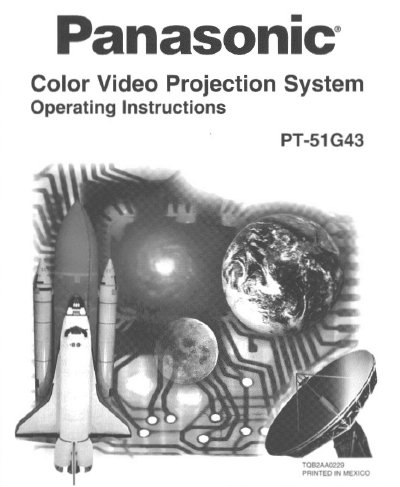

This document provides operating instructions for the Panasonic PT-51G43 Color Video Projection System. It includes safety warnings, customer record information, and guidelines for care and cleaning of the unit and remote control.
The manual details the installation process, including location selection, cable connections for VHF/UHF or cable TV, and optional equipment like VCRs and audio amplifiers. It also explains how to use the Main Menu, Picture-in-Picture (PIP) features, and various settings such as timers and channel captioning.
| Power Source | 120V AC, 60Hz |
|---|---|
| Channel Capability VHF | 181 channels |
| Channel Capability UHF | 56 channels |
| Video Input Jacks | 2 Video tnput Jacks 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Input Jacks | 2 Audio Input Jacks 500mV RMS 47K Ohm |
Occasionally dust with a feather duster or very soft brush using only up and down motions. Never rub across the screen in side to side motion.
Shielded audio and video cables should be used, specifically 75-ohm coaxial shielded cables.
Press the ACTION button on the remote control to display the Main Menu and Sub Menus.
A second video source, such as a VCR or camcorder, is required to provide a second picture.
