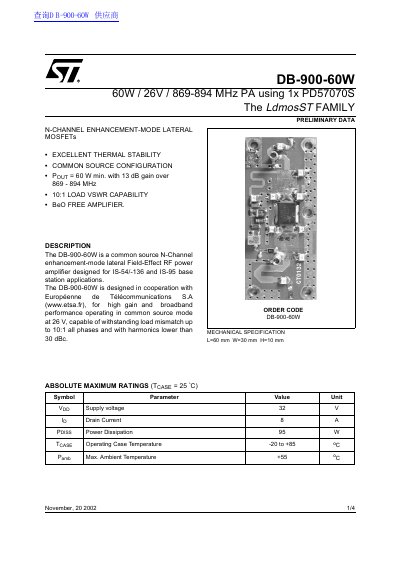

The DB-900-60W is a N-Channel enhancement-mode lateral Field-Effect RF power amplifier designed for IS-54/-136 and IS-95 base station applications. It features high gain and broadband performance, operating in common source mode at 26V, capable of withstanding 10:1 load mismatch and with harmonics lower than 30dBc.
The DB-900-60W is a common source N-Channel enhancement-mode lateral MOSFET RF power amplifier designed for IS-54/-136 and IS-95 base station applications. It is designed in cooperation with Européenne de Télécommunications S.A. for high gain and broadband performance operating in common source mode at 26 V.
| Supply Voltage | 32 V |
|---|---|
| Drain Current | 8 A |
| Power Dissipation | 95 W |
| Operating Case Temperature | -20 to +85 °C |
| Max. Ambient Temperature | +55 °C |
| Frequency Range | 869 - 894 MHz |
| Power Output | 60 W |
| Gain | 13 dB |
| Load Mismatch | 10:1 |
| Harmonic | -30 dBc |
| Dimensions | L=60 mm W=30 mm H=10 mm |
The supply voltage is 32 V.
The operating case temperature range is -20 to +85 °C.
The maximum ambient temperature is +55 °C.
The amplifier can withstand a load mismatch of 10:1.
