DB-960-60W is a high gain broadband power amplifier designed by European Telecommunications and ETSA. It is rated at 26V, with a maximum current of 8A and a maximum power dissipation of 95W. The maximum operating temperature is +85℃.

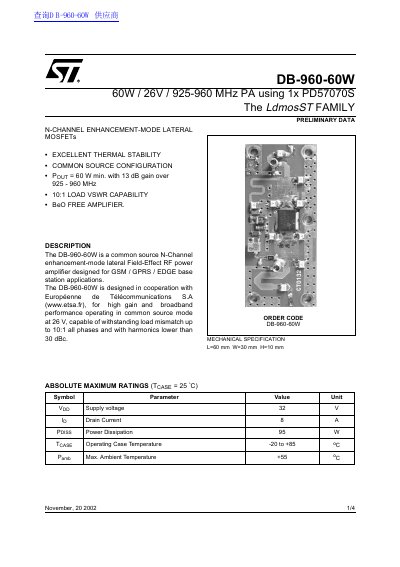

The DB-960-60W is a common source N-Channel enhancement-mode lateral Field-Effect RF power amplifier designed for GSM / GPRS / EDGE base station applications. It is designed in cooperation with Européenne de Télécommunications S.A for high gain and broadband performance operating in common source mode at 26 V.
| Supply Voltage | 32 V |
|---|---|
| Drain Current | 8 A |
| Power Dissipation | 95 W |
| Operating Case Temperature | -20 to +85 °C |
| Max. Ambient Temperature | +55 °C |
| Frequency Range | 925 - 960 MHz |
| Power Output | 60 W |
| Gain | 13 dB |
| Load Mismatch Capability | 10:1 |
It is designed for GSM / GPRS / EDGE base station applications.
The maximum power dissipation is 95 W.
