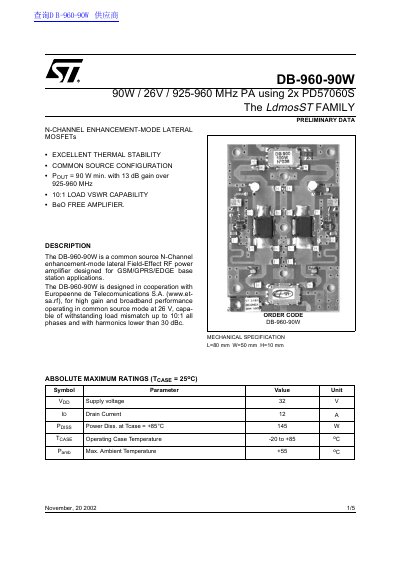

The DB-960-90W is a N-Channel enhancement-mode lateral Field-Effect RF power amplifier designed for GSM/GPRS/EDGE base station applications. It has excellent thermal stability, operates in the frequency range of 925-960 MHz, with a minimum output power of 90 W and a gain of 13 dB. The amplifier is sized at 80 mm x 50 mm x 10 mm.
The DB-960-90W is a common source N-Channel enhancement-mode lateral Field-Effect RF power amplifier designed for GSM/GPRS/EDGE base station applications. It is designed in cooperation with Europeenne de Telecomunications S.A. for high gain and broadband performance operating in common source mode at 26 V.
| Frequency Range | 925 - 960 MHz |
|---|---|
| Output Power | 90 W min. |
| Gain | 13 dB |
| Load Mismatch Capability | 10:1 |
| Supply Voltage | 32 V |
| Drain Current | 12 A |
| Operating Case Temperature | -20 to +85 °C |
| Dimensions | 80 x 50 x 10 mm |
The amplifier provides a minimum output power of 90 W.
The device is designed to operate at a supply voltage of 26 V.
The amplifier can withstand a load mismatch up to 10:1.
