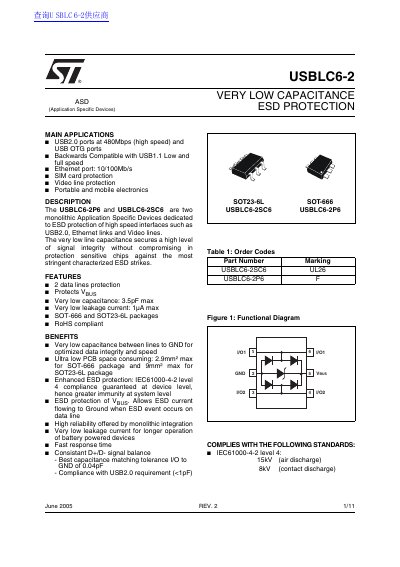

USBLC6-2 is a very low capacitance ESD protection device designed for protection of high speed interfaces such as USB2.0, Ethernet links and Video lines. Its very low line capacitance secures a high level of signal integrity without compromising in protection sensitive chips against the most stringent characterized ESD strikes.
The document describes the USBLC6-2P6 and USBLC6-2SC6 as monolithic Application Specific Devices designed to protect high-speed interfaces such as USB 2.0 ports at 480Mbps, Ethernet links (10/100Mb/s), and video lines against Electrostatic Discharge (ESD). The device features very low line capacitance of 3.5pF maximum to ensure signal integrity while providing IEC61000-4-2 Level 4 compliance for air discharge (15kV) and contact discharge (8kV).
| ESD Air Discharge Level | 15 kV |
|---|---|
| ESD Contact Discharge Level | 8 kV |
The device is dedicated to ESD protection for USB 2.0 ports at 480Mbps, Ethernet links (10/100Mb/s), SIM card protection, and video lines.
The very low line capacitance is a maximum of 3.5pF.
The device is available in SOT-666 and SOT23-6L packages.
