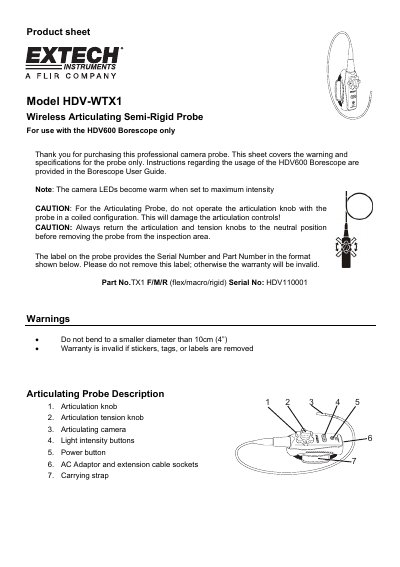

This document is a product sheet for the HDV-WTX1 wireless articulating semi-rigid probe, designed exclusively for use with the HDV600 borescope. The probe offers excellent flexibility and high-definition imaging, making it suitable for various inspection applications.
This document is a product sheet for the Extech HDV-WTX1 Wireless Articulating Semi-Rigid Probe, designed for use with the HDV600 Borescope. It provides essential warnings, such as not operating the articulation knob while the probe is coiled, and details on how to remove the probe safely. The sheet also explains how to re-orient the probe if it has been twisted or coiled during use.
| Resolution | 640 x 480 pixels |
|---|---|
| Length | 1m (3.3') |
| Outer diameter | 6mm (0.02") |
| Battery | 3.7V rechargeable Li-Polymer |
| Focus distance | 2 to 6cm (0.79 to 2.36") |
| Housing | Stainless Steel |
| Field of View | 60° |
| Number of LEDs | 4 |
| Lamp Output | 3500 Lux at 20mm |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
The charging status LED turns green when the battery is fully charged, while red indicates it is still charging.
No, the rechargeable battery is not user replaceable.
