This document covers the warnings and specifications for the HDV-5CAM-1RM Macro Lens Rigid Probe. It is designed for use with the HDV600 Borescope and features high resolution, 1m length, 5.5mm outer diameter, 4 LEDs, and more.

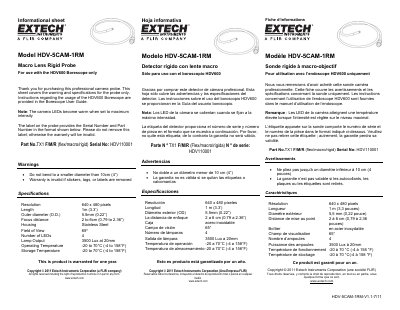

This document is an informational sheet for the Extech HDV-5CAM-1RM Macro Lens Rigid Probe. It provides specific warnings and technical specifications for the probe component only. Users are directed to the separate Borescope User Guide for instructions on using the HDV600 Borescope.
| Resolution | 640 x 480 pixels |
|---|---|
| Length | 1m (3.3') |
| Outer Diameter | 5.5mm (0.22") |
| Focus Distance | 2 to 6cm |
| Housing Material | Stainless Steel |
| Field of View | 65º |
| Number of LEDs | 4 |
| Lamp Output | 3500 Lux at 20mm |
| Operating Temperature | -20 to 70°C |
| Storage Temperature | -20 to 70°C |
Do not bend the probe to a diameter smaller than 10cm (4 inches).
Yes, the camera LEDs become warm when set to maximum intensity.
This product is warranted for one year.
Instructions for the HDV600 Borescope are provided in the Borescope User Guide.
