This document provides warning and specification information for the HDV-25CAM-30G model camera probe. The probe is designed for use with the HDV600 borescope. It features a resolution of 640 x 480 pixels, a length of 30m, an outer diameter of 25mm, and a focus distance of 6cm to infinity.

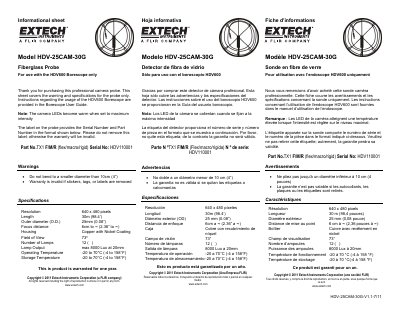

This document is an informational sheet for the Extech HDV-25CAM-30G Fiberglass Probe. It provides technical specifications and safety warnings specifically for this camera probe component.
The probe is designed exclusively for use with the HDV600 Borescope. The text notes that the camera LEDs become warm when set to maximum intensity and warns users not to remove the label on the probe, as doing so will invalidate the warranty.
| Resolution | 640 x 480 pixels |
|---|---|
| Length | 30m (98.4 ft) |
| Outer diameter | 25mm (0.08") |
| Housing material | Copper with Nickel Coating |
| Field of View | 73° |
| Number of Lamps | 12 |
| Lamp Output max | 8000 Lux at 20mm |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
Do not bend the probe to a smaller diameter than 10cm (4 inches).
The warranty will become invalid.
