This document introduces the warning and specifications information for the HDV-5CAM-1FM model probe.

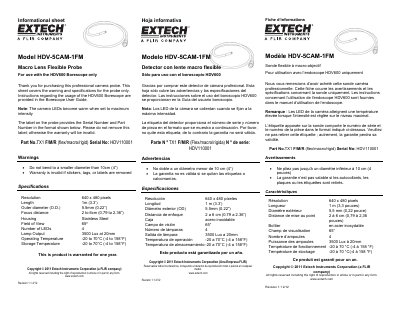

This document serves as an informational sheet for the Extech HDV-5CAM-1FM Macro Lens Flexible Probe, designed specifically for use with the HDV600 Borescope. It provides essential warnings regarding handling and warranty validity, noting that the camera LEDs generate heat at maximum intensity and that removing labels voids the warranty.
| Resolution | 640 x 480 pixels |
|---|---|
| Length | 1m (3.3') |
| Outer diameter | 5.5mm (0.22") |
| Focus distance | 2 to 6cm (0.79 to 2.36") |
| Housing material | Stainless Steel |
| Field of View | 65º |
| Number of LEDs | 4 |
| Lamp Output | 3500 Lux at 20mm |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
Do not bend the probe to a diameter smaller than 10cm (4").
Yes, the warranty becomes invalid if stickers, tags, or labels are removed.
