This document provides warning and specification information for the HDV-4CAM-1FM Macro Lens Flexible Probe. The probe is designed for use with the HDV600 Borescope and includes specifications such as resolution, length, outer diameter, focus distance, housing material, field of view, number of LEDs, and lamp output.

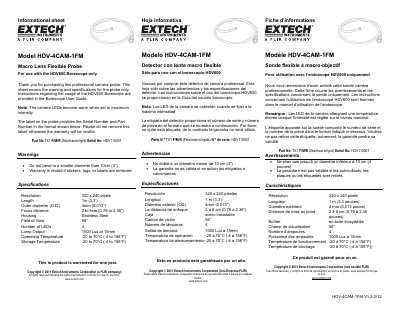

This document is an informational sheet for the Extech Model HDV-4CAM-1FM Macro Lens Flexible Probe. It serves as a quick reference guide containing specific technical data and operational warnings for this camera probe component.
The probe is designed exclusively for use with the HDV600 Borescope system. The document highlights that while it covers warnings and specifications, detailed usage instructions are found in the separate Borescope User Guide.
| Resolution | 320 x 240 pixels |
|---|---|
| Length | 1 m (3.3) |
| Outer diameter | 4mm (0.013) |
| Focus distance | 2 to 6cm |
| Housing material | Stainless Steel |
| Field of View | 56° |
| Number of LEDs | 4 |
| Lamp Output | 1000 Lux at 15mm |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
This probe is for use with the HDV600 Borescope only.
The warranty will be invalid if stickers, tags, or labels are removed.
This product is warranted for one year.
