This document provides information about the features and specifications of the HDV-5CAM-30FM model. It is a professional camera probe designed for use with the HDV600 Borescope. It features high resolution, long length, small outer diameter, and adjustable focus distance.

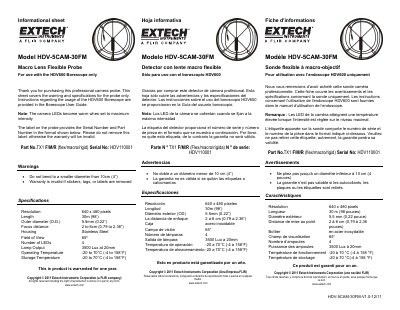

This document is an informational sheet for the Extech HDV-5CAM-30FM Macro Lens Flexible Probe. It is designed for use exclusively with the HDV600 Borescope and covers warnings and technical specifications for the probe only. Instructions for the borescope itself are not included in this sheet.
The probe features a stainless steel housing and a flexible cable with a length of 30 meters. It includes a macro lens with a focus distance of 2 to 6 cm and a field of view of 65 degrees. The probe is equipped with 4 LEDs providing 3500 Lux of light output at 20mm.
| Resolution | 640 x 480 pixels |
|---|---|
| Length | 30m |
| Outer diameter | 5.5mm |
This probe is for use with the HDV600 Borescope only.
Do not bend the probe to a smaller diameter than 10cm.
The warranty becomes invalid if stickers, tags, or labels are removed.
This product is warranted for one year.
