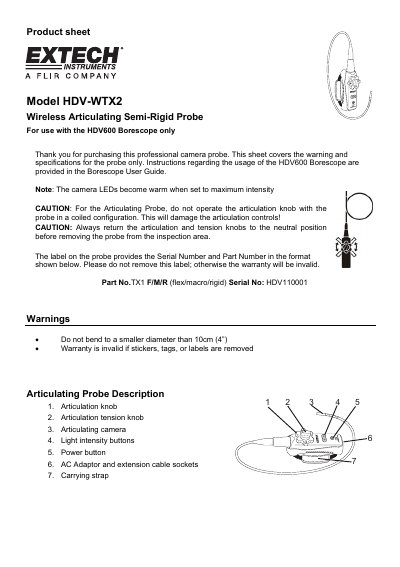

This document is the product sheet of HDV-WTX2 Wireless Articulating Semi-Rigid Probe, covering the warning and specifications for the probe only.
This document is a product sheet for the Extech HDV-WTX2 Wireless Articulating Semi-Rigid Probe. It provides essential information including specific warnings regarding probe handling, such as avoiding operation in coiled configurations to prevent damage and maintaining the serial number label for warranty validity.
The sheet details the physical specifications of the probe, including a 640 x 480 pixel resolution, a length of 2 meters, and an outer diameter of 6mm. It also outlines the articulation setup procedure to ensure correct orientation after storage or twisting.
| Resolution | 640 x 480 pixels |
|---|---|
| Length | 2m (6.6') |
| Outer diameter | 6mm (0.02") |
| Battery type | 3.7V rechargeable Li-Polymer |
| Focus distance | 2 to 6cm (0.79 to 2.36") |
| Field of View | 60º |
| Number of LEDs | 4 |
| Lamp Output | 3500 Lux at 20mm |
Do not bend the probe to a smaller diameter than 10cm (4").
No, removing the label will invalidate the warranty.
A red LED indicates that the battery is currently charging.
