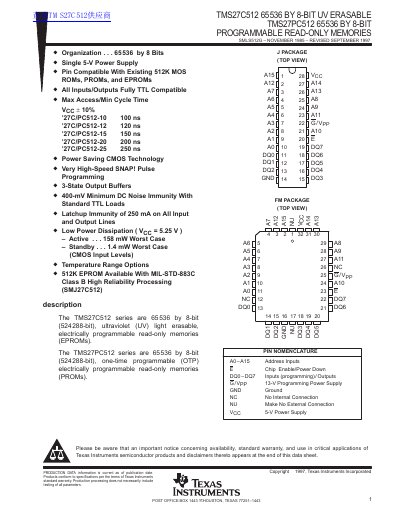

TMS27C512 is a 65536 by 8-bit (524288-bit) ultraviolet (UV) light erasable electrically programmable read-only memory (EPROM). The TMS27PC512 is a 65536 by 8-bit (524288-bit) one-time programmable (OTP) electrically programmable read-only memory (PROM).
This document describes the TMS27C512 series of 65536 by 8-bit ultraviolet erasable electrically programmable read-only memories (EPROMs) and the TMS27PC512 series of one-time programmable (OTP) PROMs. Both devices utilize power-saving CMOS technology for high-speed operation and simple interfacing with MOS and bipolar circuits. They are pin-compatible with existing 512K MOS ROMs and PROMs.
| Memory Size | 65536 by 8 Bits |
|---|---|
| Technology | Power Saving CMOS |
| Operating Voltage | 5 V |
| Programming Voltage | 13 V |
| Latchup Immunity | 250 mA |
| Operating Temperature (Commercial) | 0°C to 70°C |
| Operating Temperature (Industrial) | -40°C to 85°C |
The devices are programmed using the SNAP! Pulse programming algorithm.
The nominal programming time is seven seconds.
The signature code is 9785, accessed by forcing AQ to 12 V.
Yes, it is erased by exposing the chip to high intensity ultraviolet light.
