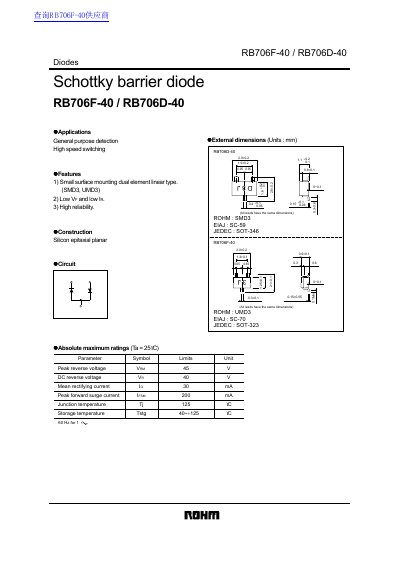

ROHM RB706F-40 / RB706D-40 Schottky Barrier Diode Datasheet

RB706F-40 / RB706D-40 Schottky barrier diodes are small surface mounting dual element linear diodes produced by ROHM. They have low VF and low IR, and can be used for detection and high frequency switching applications.

Brand: ROHM
Category: diode
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 25 KB
Published: 12 July, 2012
Updated: 30 September, 2023
Model: RB706D-40
MD5 checksum: BE1D6CE97F23333852BD6F0A2631F5AA
PDF: ROHM RB706F-40 / RB706D-40 Schottky Barrier Diode Datasheet PDF

About this manual

This document provides technical specifications for the ROHM RB706F-40 and RB706D-40 Schottky barrier diodes. These are small surface-mounting dual element linear type diodes designed for general purpose detection and high speed switching applications. The datasheet details their construction as silicon epitaxial planar devices.

What's inside

Applications
Features
Construction
Absolute maximum ratings
External dimensions
Electrical characteristics
Electrical characteristic curves

Specifications

DC reverse voltage	40 V
Peak forward surge current	200 mA
Junction temperature	125 °C
Storage temperature	-40~+125 °C
Forward voltage	0.37 V
Capacitance between terminals	2.0 pF

Frequently asked questions

What are the stated applications for the RB706F-40 / RB706D-40 diode?

The diode is intended for general purpose detection and high speed switching.

What is the maximum junction temperature for the RB706F-40 / RB706D-40?

The maximum junction temperature is 125 °C.

What is the maximum DC reverse voltage rating for the RB706F-40 / RB706D-40?

The maximum DC reverse voltage rating is 40 V.
