RB715F Schottky barrier diode is a low power diode with small package, low VF and high reliability.

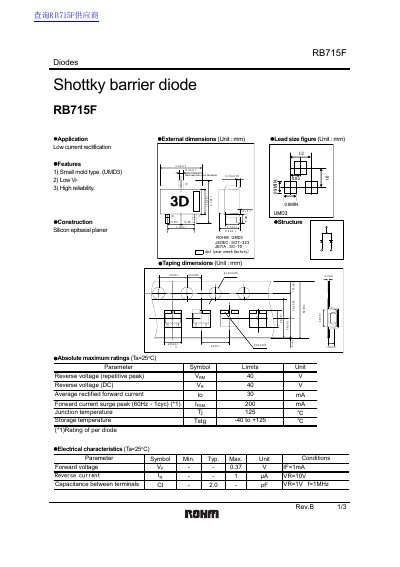

The document is a datasheet for the ROHM RB715F Schottky barrier diode, designed for low current rectification applications. It details the device's features, such as a small UMD3 package type and low forward voltage drop.
The datasheet includes comprehensive technical data, including absolute maximum ratings, electrical characteristics at 25°C, and various characteristic curves for forward voltage, reverse current, and capacitance. It also provides external dimensions and lead sizes for the SOT-323 (UMD3) package.
| Package Type | UMD3 |
|---|---|
| Application | Low current rectification |
| Reverse Voltage | 40 V |
| Average Rectified Forward Current | 30 mA |
| Forward Voltage | 0.37 V |
| Reverse Leakage Current | 1 µA |
| Storage Temperature | -40 to +125 °C |
The primary application is low current rectification.
The maximum reverse voltage rating is 40 V.
The typical forward voltage drop is 0.37 V at 1 mA.
