RB751CS-40 is a Schottky barrier diode from ROHM Semiconductor. It features low forward voltage, high reliability, and small size. It is suitable for low current rectification applications.

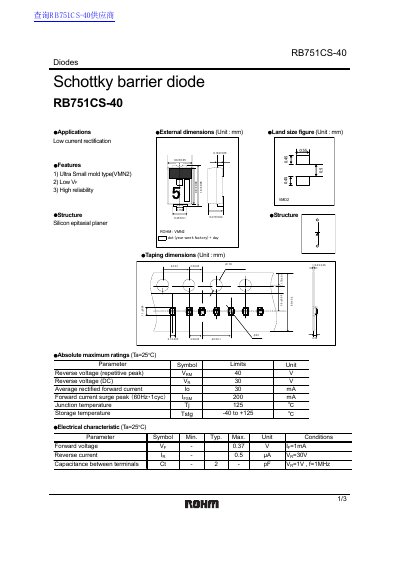

This document is a datasheet for the ROHM RB751CS-40 Schottky barrier diode. It describes the device as an ultra-small mold type suitable for low current rectification applications. The document provides detailed electrical characteristics, including forward voltage, reverse current, and capacitance, along with maximum ratings for reverse voltage and current.
| Reverse voltage (repetitive peak) | 40 V |
|---|---|
| Reverse voltage (DC) | 30 V |
| Average rectified forward current | 30 mA |
| Forward current surge peak | 200 mA |
| Junction temperature | 125 °C |
| Storage temperature | -40 to +125 °C |
| Forward voltage | 0.37 V |
| Reverse current | 0.5 µA |
| Capacitance between terminals | 2 pF |
The maximum average rectified forward current is 30 mA.
The maximum repetitive peak reverse voltage is 40 V.
The maximum junction temperature is 125 C.
