RB715Z is a 1/3 Schottky barrier diode mainly used for general rectification. It features small size, low VF, and high reliability.

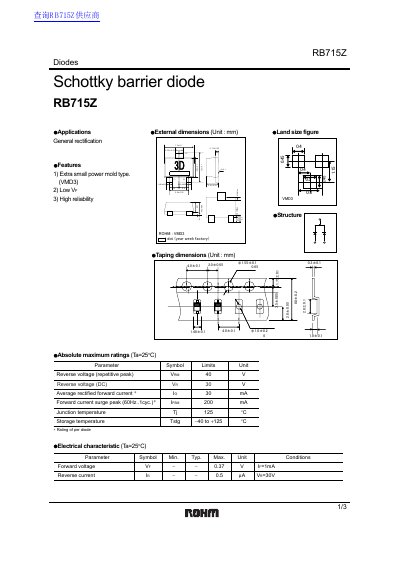

This document is a datasheet for the ROHM RB715Z Schottky barrier diode, designed for general rectification applications. It highlights features such as an extra small power mold type (VMD3), low forward voltage (VF), and high reliability. The diode is available in a VMD3 package with specific external dimensions and land size figures provided.
| Reverse voltage (repetitive peak) | 30 V |
|---|---|
| Forward current surge peak | 200 mA |
| Junction temperature | 125 °C |
| Storage temperature | -40 to +125 °C |
| Forward voltage | 0.37 V |
| Reverse current | 0.5 µA |
The RB715Z uses an extra small power mold type known as VMD3.
The maximum junction temperature is 125 °C.
