The RB715W / RB715F Schottky diodes are new small surface mounting diodes for general purpose detection and high speed switching applications. The series features low VF and low IR, high reliability and a small package.

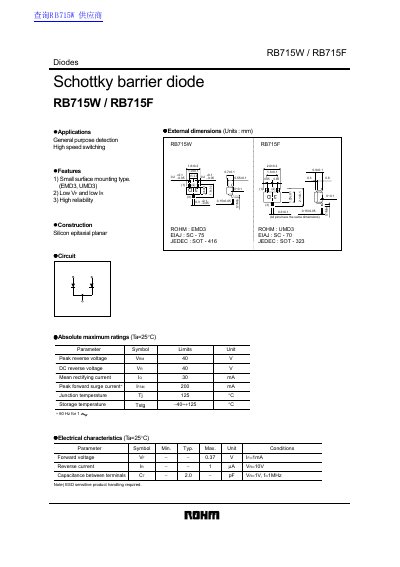

The document describes the ROHM RB715W and RB715F series as small surface-mounting type Schottky barrier diodes designed for general-purpose detection and high-speed switching applications. Key features include low forward voltage (V_F) and reverse current (I_R), along with high reliability.
| Peak reverse voltage (VRM) | 40 V |
|---|---|
| DC reverse voltage (VR) | 40 V |
| Mean rectifying current (IO) | 30 mA |
| Peak forward surge current (IFSM) | 200 mA |
| Junction temperature (Tj) | 125 °C |
The absolute maximum peak reverse voltage is 40 V.
The diode supports a mean rectifying current of 30 mA when Ta=25 °C.
The maximum specified junction temperature is 125 °C.
