RB751V-40 is a Schottky diode from ROHM. Its features are ultra small mold type, low VF and high reliability. It is suitable for low current rectification applications.

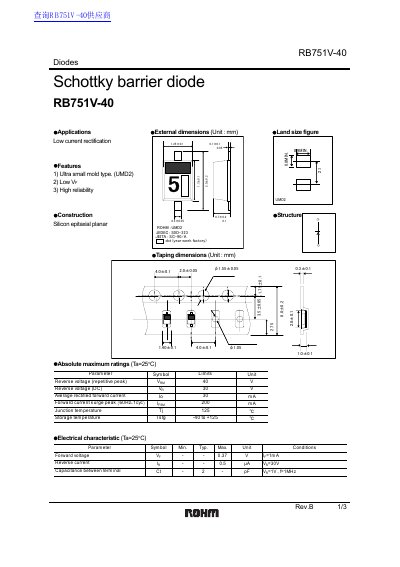

The document details the ROHM RB751V-40 Schottky barrier diode, featuring an ultra-small UMD2 package type. Key features include low forward voltage (VF) and high reliability, constructed using a silicon epitaxial planar structure.
Technical specifications are provided for absolute maximum ratings at 25°C, including a reverse voltage of 30V, average rectified forward current of 40mA, and peak surge current of 200mA. The datasheet also includes electrical characteristic curves such as VF-IF, VR-IR, and capacitance dispersion maps.
| Package Type | UMD2 |
|---|---|
| Operating Junction Temperature Range | -40 to +125°C |
| Typical Forward Voltage at 1mA | 0.37V |
| Typical Reverse Current at 30V | 0.5µA |
