RB731XN Schottky barrier diode is a small power mold type Schottky barrier diode produced by ROHM. Its features are low VF and high reliability, and it is suitable for general rectification circuits.

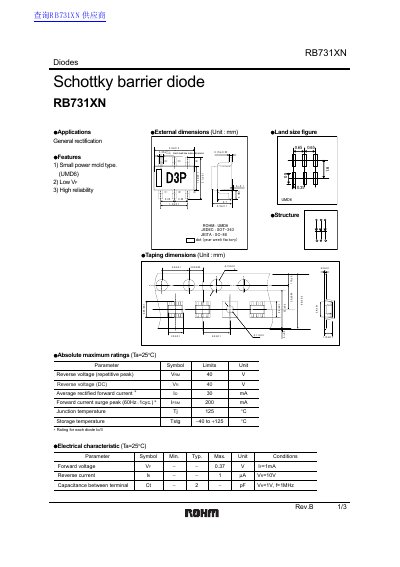

The document provides technical data for the ROHM RB731XN Schottky barrier diode, which features a small power mold type (UMD6) package. Key characteristics include low forward voltage and high reliability, making it suitable for general rectification applications.
The datasheet lists absolute maximum ratings such as a reverse voltage of 40V and an average rectified forward current of 30mA. It also includes detailed electrical characteristic curves for forward voltage, reverse current, capacitance, and peak surge forward current under various conditions.
| Package Type | UMD6 |
|---|---|
| Average Rectified Forward Current | 30 mA |
| Forward Surge Current (1 cycle) | 200 mA |
| Junction Temperature | 125 °C |
| Forward Voltage (Typical) | 0.37 V |
The maximum junction temperature is 125 °C.
The average rectified forward current rating is 30 mA.
