BCP51 is an NPN transistor with a maximum collector voltage of -45V, a maximum collector-emitter voltage of -45V, a maximum collector-base voltage of -45V, a maximum emitter-base voltage of -5V and a maximum collector current of -1.5A. Its operating temperature range is -55~150 degrees

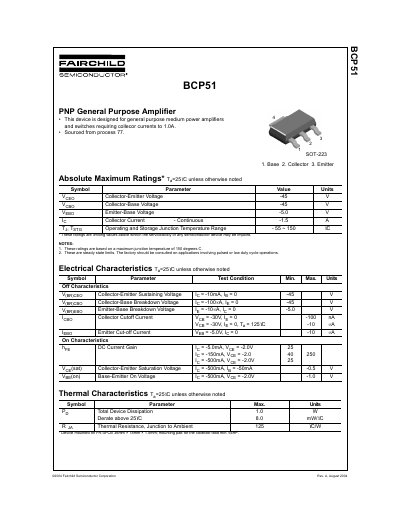

This document is a datasheet for the Fairchild Semiconductor BCP51, a PNP General Purpose Amplifier designed for medium power applications with collector currents up to 1.0A. The device is sourced from process 77 and is available in the SOT-223 package.
| Collector Current | -1.5 A |
|---|---|
| Operating Junction Temperature Range | -55 ~ 150 °C |
| Total Device Dissipation | 1.0 W |
| Package Type | SOT-223 |
The device is designed for collector currents to 1.0A, with a continuous rating of -1.5A.
The BCP51 is available in the SOT-223 package.
The operating and storage junction temperature range is -55 to 150 °C.
