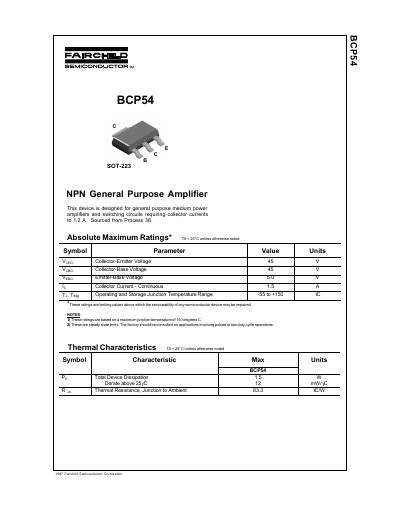

This document describes the absolute maximum ratings and thermal characteristics of the BCP54 NPN general purpose amplifier. This device is designed for general purpose medium power amplifiers and switching circuits requiring collector currents up to 1.2A.
The document describes the BCP54, an NPN General Purpose Amplifier designed for medium power amplifiers and switching circuits. It supports collector currents up to 1.2 A and features a SOT-223 package. The datasheet details absolute maximum ratings, electrical characteristics, and typical performance curves.
| Collector Current - Continuous | 1.5 A |
|---|---|
| Operating Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation | 1.5 W |
The device supports a continuous collector current of up to 1.5 A and has a total device dissipation rating of 1.5 W.
The operating and storage junction temperature range extends from -55 to +150 °C.
