The BCP69 is a PNP general purpose amplifier designed for medium power amplifiers and switches with a maximum collector current of 1.0A. It features a collector-emitter voltage of -20V and a collector-base voltage of -30V.

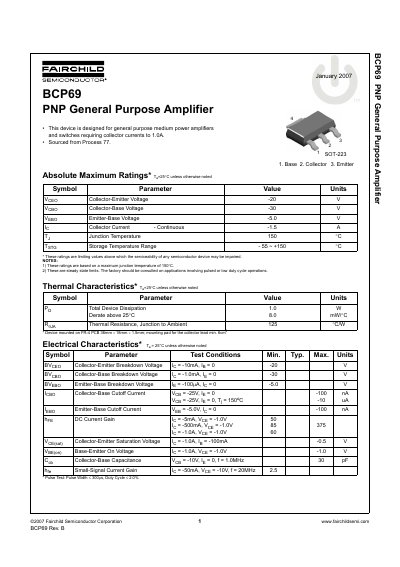

The document describes the Fairchild Semiconductor BCP69, a PNP General Purpose Amplifier designed for medium power applications. It is sourced from Process 77 and features a collector current capability of up to 1.0A. The device is housed in an SOT-223 package with pins designated for Base, Collector, and Emitter.
| Collector-Emitter Voltage | -20 V |
|---|---|
| Collector Current | -1.5 A |
| Junction Temperature | 150 °C |
| Total Device Dissipation | 1.0 W |
| Thermal Resistance, Junction to Ambient | 125 °C/W |
The device is designed for collector currents to 1.0A, with a continuous rating of -1.5A.
The BCP69 is available in an SOT-223 package.
The maximum junction temperature is 150 °C.
