BCV71 is a diode produced by Fairchild Semiconductor Corporation. Its characteristics include: maximum collector-emitter voltage of 60V, maximum collector-base voltage of 80V, maximum emitter-base voltage of 5.0V, maximum collector current of 500mA, and operating and storage temperature range of -55~+150°C.

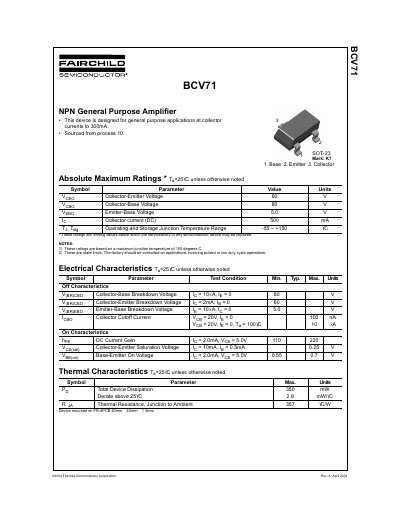

This document provides design specifications for the Fairchild Semiconductor BCV71, an NPN General Purpose Amplifier designed for collector currents up to 300mA. It includes absolute maximum ratings such as a collector-emitter voltage of 60V and a collector current of 500mA, along with operating and storage junction temperature ranges from -55°C to +150°C.
The datasheet details electrical characteristics including off-state breakdown voltages and on-state parameters like DC current gain and saturation voltage. It also specifies thermal characteristics, such as total device dissipation of 350mW, and provides package dimensions for the SOT-23 form factor.
| Emitter-Base Voltage | 5.0 V |
|---|---|
| Operating Junction Temperature | -55 ~ +150 °C |
| Total Device Dissipation | 350 mW |
| Thermal Resistance (Junction to Ambient) | 357 °C/W |
The device is designed for general purpose applications at collector currents to 300mA, with an absolute maximum rating of 500mA.
The typical DC current gain is 220, with a minimum of 110 when the collector current is 2.0mA and collector-emitter voltage is 5.0V.
