The BSS64 is a NPN general purpose amplifier produced by Fairchild Semiconductor Corporation. Its features are a maximum collector-emitter voltage of 80V, a maximum collector-base voltage of 120V, a maximum emitter-base voltage of 5.0V, a maximum collector current of 200mA, and a working temperature range of -55 to +150 degrees C.

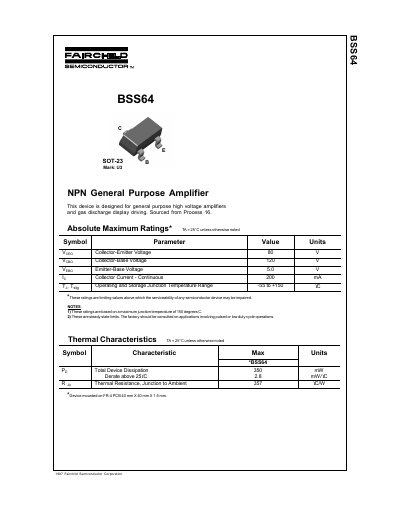

This document is a datasheet for the Fairchild Semiconductor BSS64, an NPN General Purpose Amplifier designed for high voltage amplifiers and gas discharge display driving. The device is sourced from Process 16 and is rated for collector-emitter voltages up to 80V and continuous collector currents of 200mA.
| Collector Current - Continuous | 200 mA |
|---|---|
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation | 350 mW |
| Thermal Resistance, Junction to Ambient | 357 °C/W |
The device is designed for general purpose high voltage amplifiers and gas discharge display driving.
The maximum junction temperature is 150 degrees C.
The derating factor is 2.8 mW/°C.
