RB751V40T1/D is a Schottky barrier diode produced by ON Semiconductor. It features extremely low forward voltage and extremely fast switching speed, making it ideal for high-frequency switching applications, circuit protection and voltage clamping.

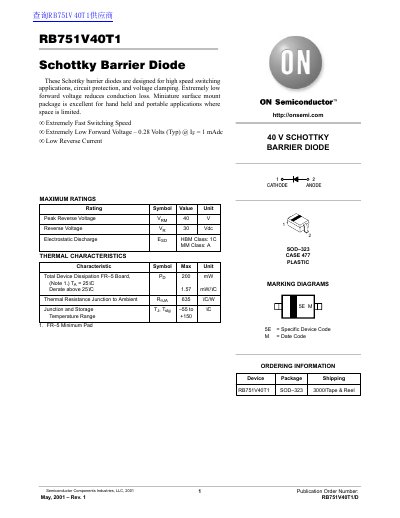

The document describes the RB751V40T1 Schottky Barrier Diode, designed for high-speed switching, circuit protection, and voltage clamping. It features an extremely low forward voltage of 0.28 Volts (Typ) and is housed in a miniature SOD-323 surface mount package suitable for space-limited applications.
| Peak Reverse Voltage | 40 V |
|---|---|
| Reverse Voltage | 30 V |
| Forward Voltage (Typ) | 0.28 Volts |
| Package Type | SOD-323 |
| Operating Temperature Range | -55 to +150 °C |
The typical forward voltage is 0.28 Volts at a forward current of 1 mA.
The maximum peak reverse voltage rating is 40 V.
The device operates within a junction and storage temperature range of -55 to +150 °C.
