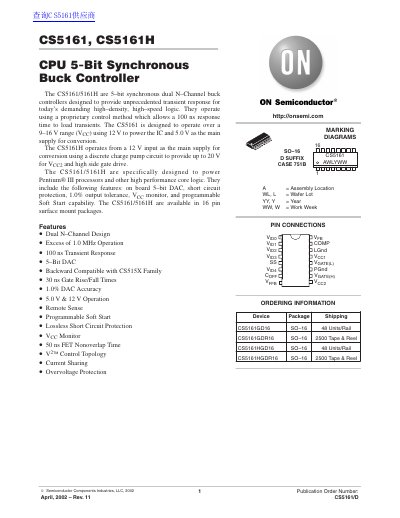

The CS5161/5161H are 5-bit synchronous dual N-Channel buck controllers designed to provide unprecedented transient response for today's demanding high-density, high-speed logic. They operate using a proprietary control method which allows a 100 ns response time to load transients. The CS5161 is designed to operate over a 9-16 V range (VCC) using 12 V to power the IC and 5.0 V as the main supply for conversion. The CS5161H operates from a 12 V input as the main supply for conversion using a discrete charge pump circuit to provide up to 20 V for VCC2 and high side gate drive. The CS5161/5161H are specifically designed to power Pentium III processors and other high-performance core logic. They include the following features: on board 5-bit DAC, short circuit protection, 1.0% output tolerance, VCC monitor, and programmable Soft Start capability. The CS5161/5161H are available in 16 pin surface mount packages.
The CS5161/CS5161H are 5-bit synchronous dual N-Channel buck controllers designed to provide unprecedented transient response for today's demanding high-density, high-speed logic. They operate using a proprietary control method which allows a 100 ns response time to load transients.
The CS5161 is designed to operate over a 9-16 V range (Vcc) using 12 V to power the IC and 5.0 V as the main supply for conversion, while the CS5161H operates from a 12 V input as the main supply for conversion using a discrete charge pump circuit to provide up to 20 V for Vcc2 and high side gate drive.
| Operating Junction Temperature (CS5161) | 0 to 85 °C |
|---|---|
| Operating Junction Temperature (CS5161H) | 0 to 125 °C |
| Transient Response Time | 100 ns |
| DAC Accuracy | 1.0% |
| Gate Rise/Fall Times | 30 ns |
| Supply Current (No Switching) | 9.5 to 14.5 mA |
The CS5161 is designed to operate over a 9-16 V range (Vcc).
It uses a discrete charge pump circuit to provide up to 20 V for Vcc2 and high side gate drive.
They are specifically designed to power Pentium® III processors and other high performance core logic.
