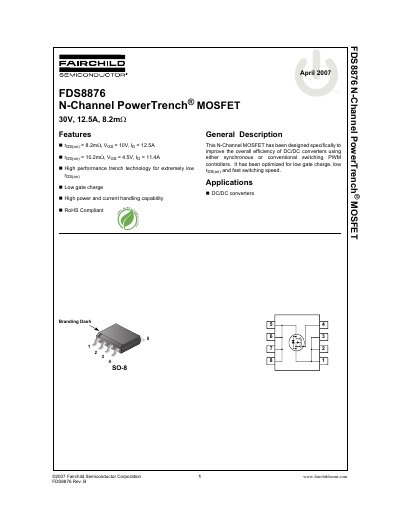

FDS8876 N-Channel PowerTrench® MOSFET is a low gate charge and low on-resistance power MOSFET designed specifically for DC/DC converters.
The Fairchild FDS8876 is an N-Channel PowerTrench MOSFET designed to improve the efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. It features high performance trench technology for extremely low on-resistance and fast switching speed, optimized for low gate charge and high power handling capability.
| Drain to Source Voltage | 30 V |
|---|---|
| Continuous Drain Current (Ta = 25°C, Vgs = 10V) | 12.5 A |
| Continuous Drain Current (Ta = 25°C, Vgs = 4.5V) | 11.4 A |
| Power dissipation | 25 W |
| Operating and Storage Temperature | -55 to 150 °C |
| Thermal Resistance, Junction to Case | 25 °C/W |
| Thermal Resistance, Junction to Ambient (2 oz copper) | 50 °C/W |
| Thermal Resistance, Junction to Ambient (min pad) | 125 °C/W |
| Package Type | SO-8 |
The maximum continuous drain current is 12.5 A when the gate-source voltage is 10V.
The device has a maximum power dissipation rating of 25 W.
The device operates and stores in a temperature range from -55 to 150 °C.
