FDS8813NZ is an N-Channel PowerTrench® MOSFET with a drain-to-source voltage of 30V, a drain current of 18.5A, and a maximum on-state resistance of 4.5mΩ. This device is produced using Fairchild Semiconductor's advanced PowerTrench® process and is well suited for power management and load switching applications such as notebook computers and portable battery packs.

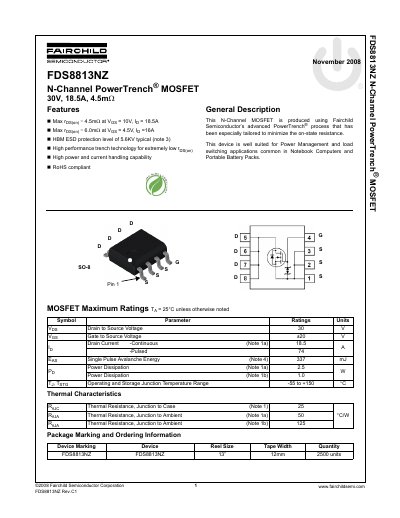

This document is a datasheet for the Fairchild Semiconductor FDS8813NZ, an N-Channel PowerTrench MOSFET designed for power management and load switching applications. The device is optimized for use in notebook computers and portable battery packs, offering high performance with low on-state resistance.
The device supports a maximum continuous drain current of 18.5 A.
The maximum power dissipation is 2.5 W when mounted on a 2 oz copper pad.
The operating and storage junction temperature range is from -55 to +150 °C.
